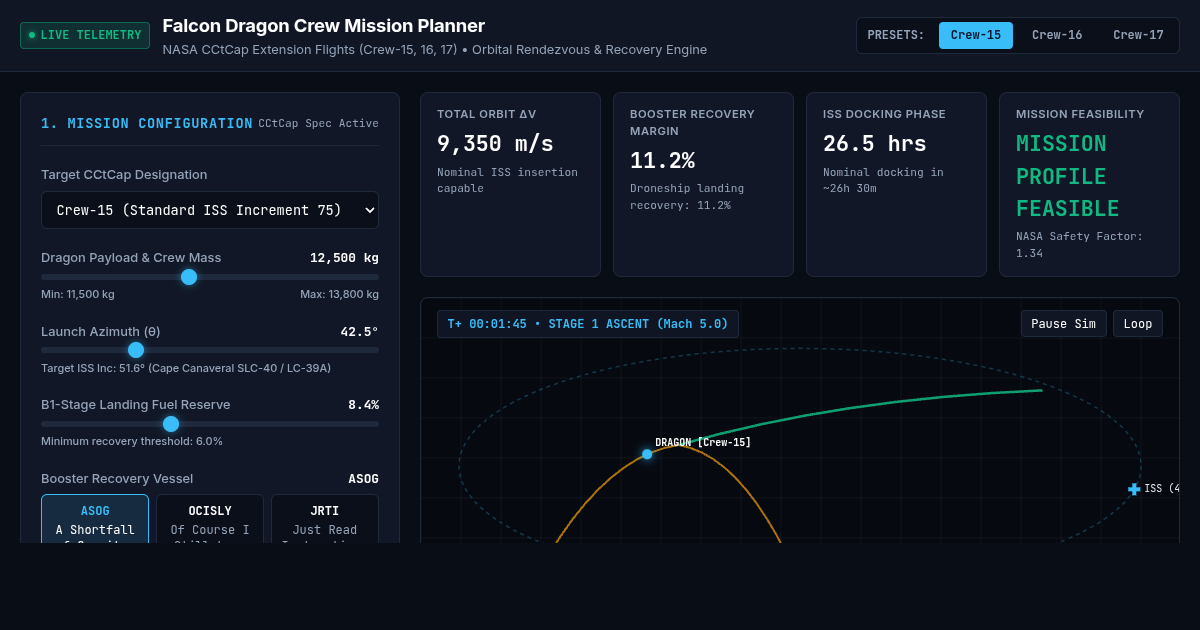

Crew Orbital Rendezvous & Launch Window Planner
Model the multi-phase rendezvous trajectory of Falcon 9 launching NASA's Crew Dragon to the International Space Station. Calculate launch window planar alignment, phasing burns, co-elliptic catchup, and propellant staging reserves.
Orbital Simulation & Trajectory Track
Inertial Geocentric View (Earth Frame)Orbital Mechanics of Station Rendezvous
When SpaceX launches a Dragon capsule to the International Space Station from Florida, the rocket cannot simply steer straight toward the station. Orbital velocity governs intercept timing: objects in lower orbits travel faster around Earth than objects in higher orbits.
By inserting Dragon into an initial 205 km circular staging orbit beneath the ISS's ~420 km altitude, Dragon completes one revolution in approximately 88.5 minutes compared to the ISS's ~92.8 minutes. This differential creates a continuous closing rate (catch-up phase) of roughly 14° per orbit.
Cape Canaveral Launch Geometry & Staging
The ISS orbits at an inclination of 51.6° to Earth's equator to permit launches from Baikonur, Cape Canaveral, and Wallops. Because the Cape sits at 28.57° N latitude, the launch site swings under the orbital plane twice daily.
Ascending node launches head North-East at approximately 45.1° azimuth over the North Atlantic, while descending passes fly South-East over the Atlantic corridor. Instantaneous planar launch windows ensure Falcon 9 does not waste precious delta-V on out-of-plane plane changes.
How does the co-elliptic phasing burn sequence work?
Dragon performs three primary Hohmann-style maneuver burns: Phase Burn raises the apogee toward 300 km to start matching orbital period; Boost Burn lifts perigee to establish a co-elliptic orbit ~10 km below the ISS; and Terminal Intercept (Ti) burns directly toward the station when Dragon reaches the R-bar/V-bar intercept corridor for laser-guided approach and soft docking.
Why is launch time constrained to an instantaneous window?
Because changing orbital plane in LEO requires massive energy (ΔV = 2 × V × sin(Δi / 2)), changing inclination by even 1 degree consumes nearly 135 m/s of propellant. Falcon 9 must liftoff at the exact minute Earth's rotation carries Kennedy Space Center directly under the station's orbital track.
What are the safety abort modes during proximity operations?
If Dragon drifts outside the 1.5° approach corridor inside the 200-meter Keep-Out Sphere (KOS), autonomous retreat burns fire Draco thrusters radially away from the velocity vector (posigrade/retrograde delta-V), ensuring orbital dynamics pull Dragon into a safe non-intersecting elliptical orbit below the ISS without risk of collision.
