Analyze why foldable phone creases form, how teardrop radius mitigates plastic creep deformation, and how incident reflections warp across the fold groove.

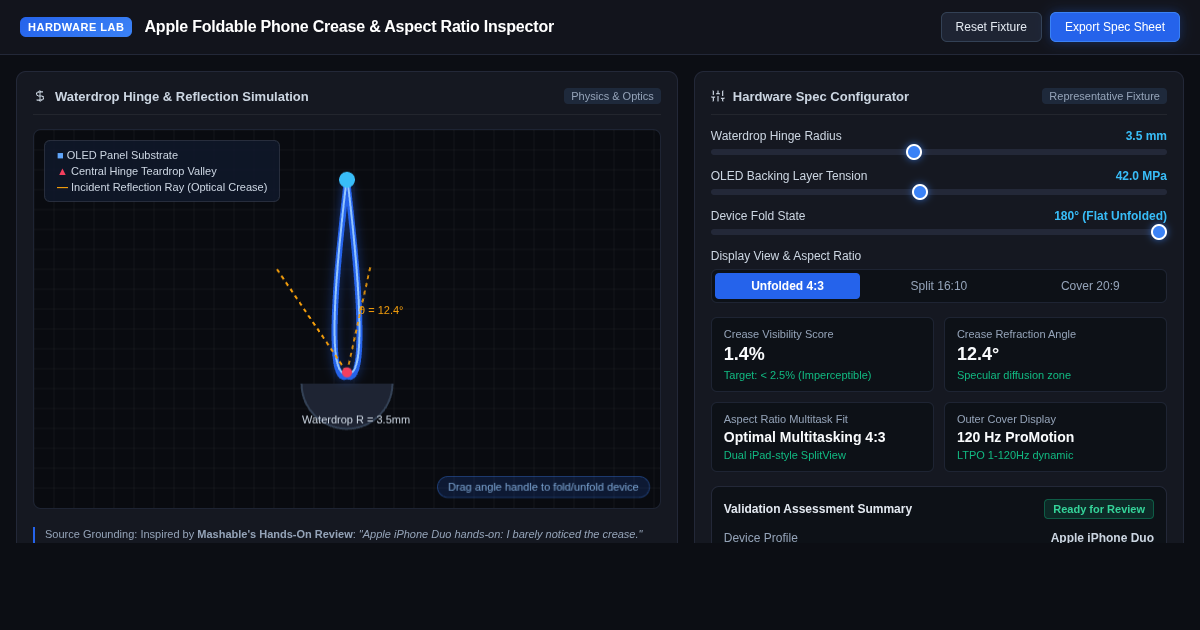

First-generation foldables used tight U-hinges (radius ≈ 1.2mm), concentrating peak bending strain (ε = y/R) past the elastic yield limit of both glass and OCA adhesives. Modern teardrop mechanisms let the display form an internal waterdrop loop with an effective neutral bend radius of 2.8mm to 3.5mm, reducing peak bending strain by over 50%.
A crease is rarely broken glass—it is cyclic viscoelastic shear creep in the optically clear adhesive (OCA) layer and localized micro-yielding in the stainless steel or titanium backing plates under the central gap. Over thousands of folds, the adhesive fails to restore fully to 180° planar tension, leaving a microscopic groove (5µm to 35µm deep).
Human eyes rarely notice a 15µm depression by touch alone. However, specular reflections of overhead ambient light deflect by twice the groove slope angle (θ_reflection = 2 · arctan(dz/dx)). Even a gentle 2.5° slope creates a 5.0° angular reflection divergence, appearing as a dark streak flanked by bright glare lines.
