Statcast Aerodynamics & Magnus Effect Physics
When Munetaka Murakami squares up a postseason fastball with his violent left-handed uppercut swing, the batted ball experiences two critical aerodynamic forces governed by fluid dynamics:
| Aerodynamic Force | Physical Equation | In-Flight Effect |
|---|---|---|
| Quadratic Drag Force ($F_D$) | $F_D = \frac{1}{2} \rho v^2 C_D A$ | Decelerates the baseball from initial exit velocity (e.g. 114 mph) down to ~62 mph at impact. Humidity and altitude alter air density $\rho$. |
| Magnus Lift Force ($F_M$) | $F_M = \frac{1}{2} \rho v^2 C_L A \cdot (\vec{\omega} \times \vec{v}) / |\vec{v}|$ | Backspin ($\sim 2250$ rpm) produces an upward pressure differential that combats gravity ($g = 32.174 \text{ ft/s}^2$), causing the ball to hang in the air and carry 30–45 additional feet over the outfield fence. |

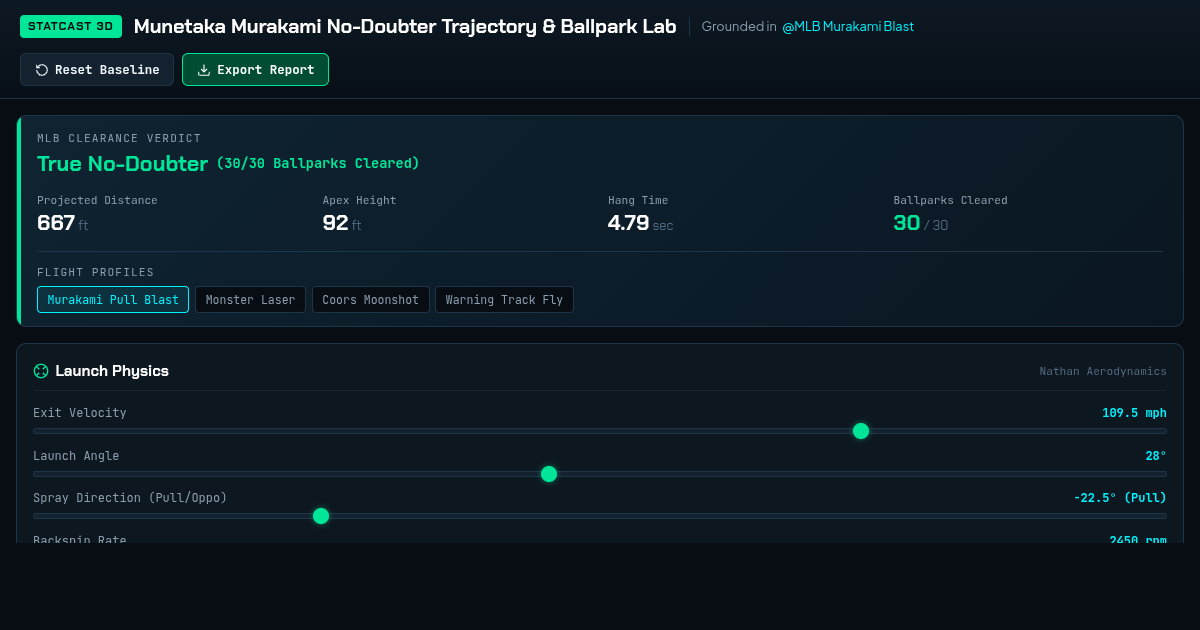

Murakami's signature left-handed pull and right-center trajectory is modeled in real 3D coordinates ($X$ horizontal spray, $Y$ vertical altitude, $Z$ straight-away depth) with dynamic fence collision detection calculated against real MLB ballpark outfield wall profiles.
How 30 MLB Ballpark Home Run Factor is Computed
Statcast calculates whether a batted ball is a "home run in $N$ of 30 parks" by testing the ball's exact altitude $y(t)$ at the precise coordinate where its distance from home plate $R = \sqrt{x^2 + z^2}$ crosses the outfield perimeter $R_{\text{wall}}(\theta)$ for each specific ballpark geometry:
- Guaranteed Rate Field (Chicago): Left 330 ft (8 ft wall), Left-Center 375 ft, Center 400 ft, Right-Center 375 ft, Right 335 ft.
- Fenway Park (Boston): 310 ft down left field line with 37-foot Green Monster wall.
- Yankee Stadium (New York): 314 ft down right field line with an accessible 8-foot porch.
