Apple TV 4K Quad HomePod Surround: Acoustic Feasibility & Setup Guide
Rumors reported by MacRumors indicate Apple is preparing software and potential hardware revisions enabling Apple TV 4K to link four physical HomePods into a true discrete front-and-rear surround sound architecture. Here is the acoustic breakdown of how the system operates, placement trade-offs, and latency synchronization.
The Architecture: Why Moving Beyond Stereo Pairs Matters
Since the introduction of the original HomePod and subsequent HomePod (2nd Gen), users have been restricted to stereo pairing (2.0 channels) acting as a virtualized Dolby Atmos rendering engine via Apple TV 4K. While Apple's computational audio utilizes wall-bounce beamforming to project side and height channels into the room, physical physics always dictates acoustic localization: sound reflected off irregular living room walls suffers severe attenuation, comb filtering, and phase smear.
Enabling a dedicated 4.0 or quad-channel array solves this fundamental limitation:
- Physical Rear Surround Localization: Independent acoustic source points behind the primary listening position eliminate reliance on rear boundary reflections, rendering panning effects in Dolby Atmos soundtracks with exact directional cues.
- Phantom Center Integrity: In standard stereo pairs, dialogue localization collapses for off-axis listeners sitting on the edges of the couch. By time-aligning both front tweeters and utilizing the rear pair to cancel unwanted cross-talk, dialogue clarity is anchored to the screen.
- Sub-Bass Wave Dispersion: Four 4-inch high-excursion woofers firing in separate room quadrants cancel localized room modes (standing waves), resulting in dramatically smoother low-frequency bass distribution without room booming.

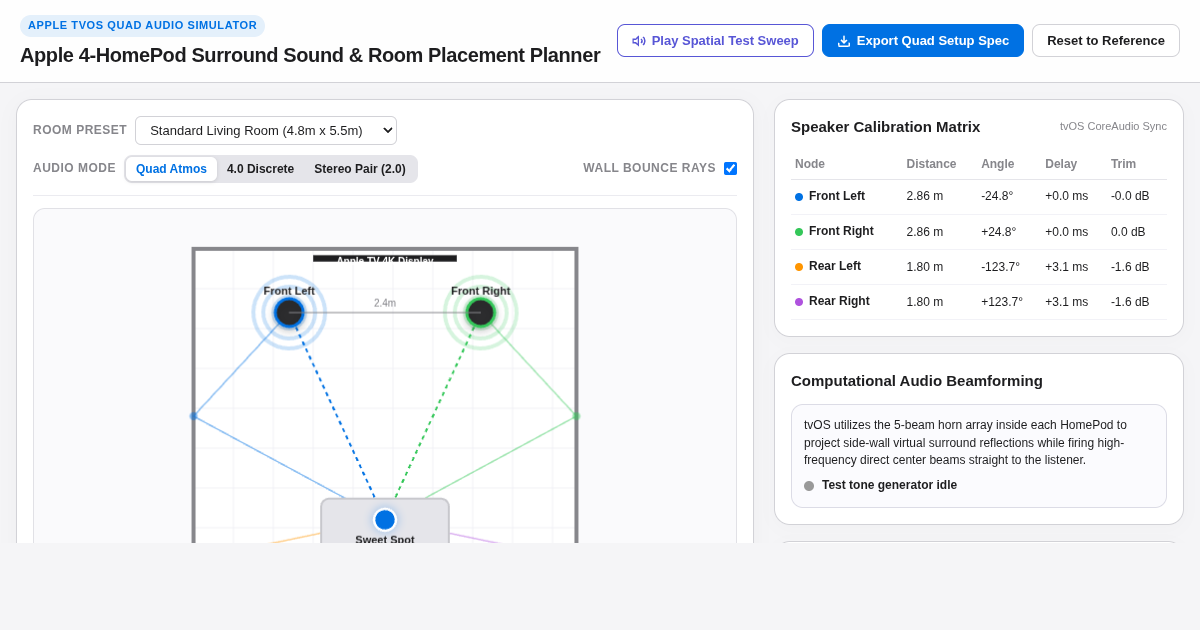

Dolby & ITU-R BS.775 Recommended Placement Guidelines
For optimum surround rendering without dedicated physical center or subwoofer channels, speaker geometry should strictly adhere to established audio engineering standards:
- Front Pair Subtended Angle (50° - 60° total): Place the Front Left (FL) and Front Right (FR) HomePods between 25° and 30° off the screen center axis. Placing them narrower than 45° collapses stereo width, while spreading beyond 65° creates a hollow phantom center channel.
- Rear Surround Pair Subtended Angle (110° - 120°): Place the Rear Left (RL) and Rear Right (RR) HomePods slightly behind the listening sweet spot at an angle between 110° and 120° from the center line. Avoid placing rear speakers directly against the back of the listener's head.
- Ear-Level Elevation: HomePod high-frequency tweeters are aimed outward and slightly upward. Front and rear units should rest on sturdy surfaces between 0.7m and 1.1m (28" to 42") off the floor for direct line-of-sight to seated listeners.
Technical Comparison: Quad HomePods vs. Traditional AVR & Soundbar
| Criteria | Quad HomePod (Rumored) | Dolby Atmos Soundbar (e.g. Sonos Arc + Eras) | Traditional AVR 5.1 System |
|---|---|---|---|
| Physical Footprint | Zero wires to TV (Power cables only); no central receiver chassis. | Long soundbar under TV + rear wireless speakers + external sub. | AV receiver unit, 5 speaker cabinets, passive speaker wiring. |
| Room Calibration | Continuous automatic room calibration using internal microphones. | Manual phone sweep (e.g. Trueplay iOS only). | Calibrated microphone measurement (Audyssey / Dirac Live). |
| Dialogue / Center Channel | Computational phantom center synthesized between front pair. | Dedicated physical center speaker drivers in bar. | Discrete dedicated center channel cabinet. |
| Low Frequency Extension | Combined bass output from 4 woofers down to ~38 Hz. | External wireless subwoofer down to ~30 Hz. | Dedicated powered 10"-12" subwoofer down to 20 Hz. |
| HDMI eARC Passthrough | Handled via Apple TV 4K eARC input from TV console. | Direct eARC input port with optional HDMI pass-through. | Multi-port HDMI 2.1 switching with full video matrixing. |
Understanding Boundary Gain & Bass Tuning
HomePods feature an acoustic woofer facing upward coupled with five horn-loaded tweeters with neodymium magnets. When placed adjacent to room boundaries, acoustic boundary reflection alters the tonal balance:
If a HomePod is situated less than 25 cm from a corner intersection, acoustic reinforcement amplifies bass frequencies below 150 Hz by up to +6 dB. While Apple's built-in accelerometer automatically triggers EQ shelf filters when it detects proximity vibrations, physical spacing of at least 30 cm from side and rear walls consistently yields cleaner dialogue frequency reproduction and better stereo imaging.
