Mission Scenario Presets
4-Crew Saturation Habitat

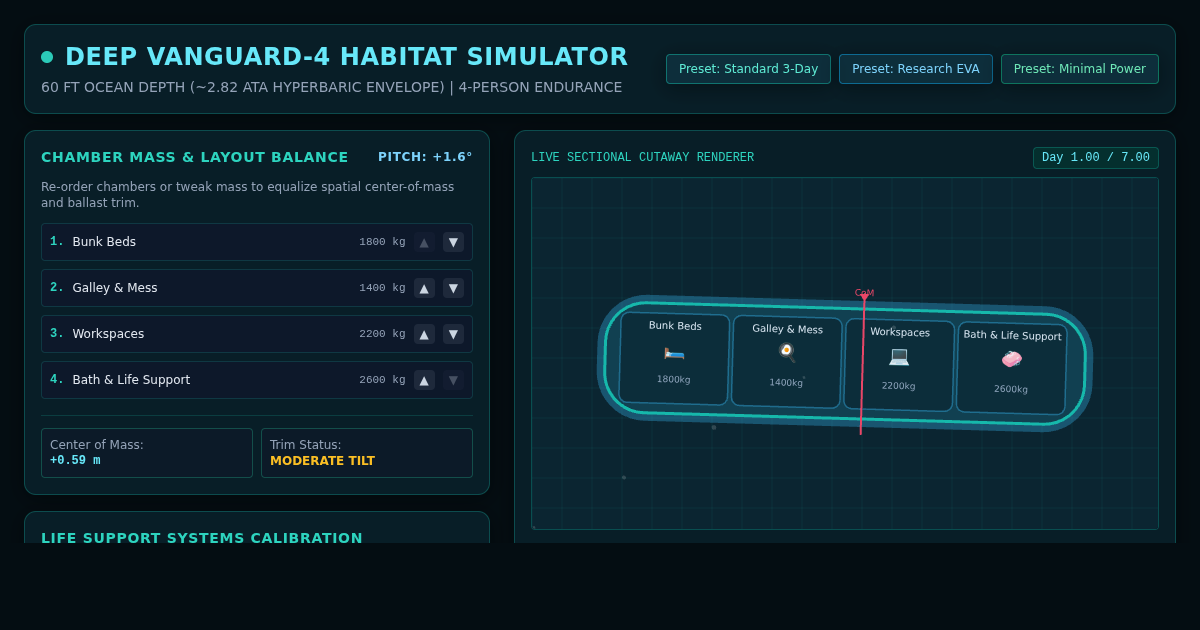

Live Habitat Schematic (p5.js Render Engine)
● Gas Flow Active
Biophysical Atmospheric Telemetry (Dalton's Law at 2.82 ATA)
ALL SYSTEMS STABLE
✓ Atmospheric parameters within nominal human physiological safety envelope.
O2 Partial Press (P_O2)
0.59 ATA
21.0% (Safe: 0.16–1.40)
N2 Partial Press (P_N2)
2.23 ATA
79.0% Blend
CO2 Accumulation
3.2 mmHg
Safe Limit: < 7.5 mmHg
Decom Obligation
18h 40m
16-Tissue Saturation
OTU Rate (O2 Toxicity)
142 U/day
Max Limit: 300 U/day
Scrubber Temp
38.5 °C
Exothermic Soda Lime
Total Power Draw
3.8 kW
Grid Cap: 6.0 kW
Life Support Efficiency
98.2%
Atmospheric Loop
16-Compartment Nitrogen Saturation Spectrum (5 min to 670 min half-lives)
94.2% Saturation
Life Support Controls
Real-time Adjust
Oxygen Injection (O2 %)
21.0 %
Ambient 2.82 ATA makes 21% O2 yield 0.59 ATA P_O2 (safe normoxic range).
CO2 Scrubber Blower Speed
85 %
Soda lime canister circulation. Higher RPM clears CO2 faster but increases thermal load.
Crew Activity Level (4 Diver Total)
Moderate Work (150W/ea)
Determines O2 consumption and CO2 output rate per habitant.
O2 Electrolysis Generation Rate
12.0 L/hr
Generates supplementary O2 directly from distilled water bank.
Auxiliary Subsystem Power Grid
Cap: 6.0 kW
Mission Logs & Export
