Why VR Frame Design Succeeds or Fails: Optics, Center of Gravity, and Motion Pacing

For over a decade, consumer virtual reality has fought an engineering compromise: high display resolution is useless if the optical assembly creates pupil swim, chromatic aberration, or neck strain within twenty minutes. As highlighted by gaming hardware analyses praising next-generation headsets like the Steam Frame architecture, getting VR "right" is not simply a matter of packing higher pixel counts. It requires solving the tri-fold interaction of optical sweet spots, weight moment arms, and ultra-tight frame-pacing budgets.

1. The Optical Sweet Spot and Eyebox Physics

A VR headset's optical pipeline is governed by the distance from the cornea to the first lens element (known as eye relief), the diameter of the exit pupil, and lens geometry:

• Folded Pancake Lenses: By polarizing light through multiple internal reflections between quarter-wave retarders and half-mirrors, pancake optics compress the optical track length from ~50mm to ~18mm. This moves the center of gravity drastically closer to the user’s skull, minimizing rotational inertia. Furthermore, they provide edge-to-edge optical clarity exceeding 85%, allowing users to look around with their pupils rather than turning their entire neck.
• Fresnel Lenses: Concentric prismatic ridges reduce glass thickness, but light scattering across ridge boundaries produces "god rays" in high-contrast scenes. Their exit eyebox is tight (often ±3.5mm), meaning slight headset slippage during rapid head rotation plunges the periphery into blur.

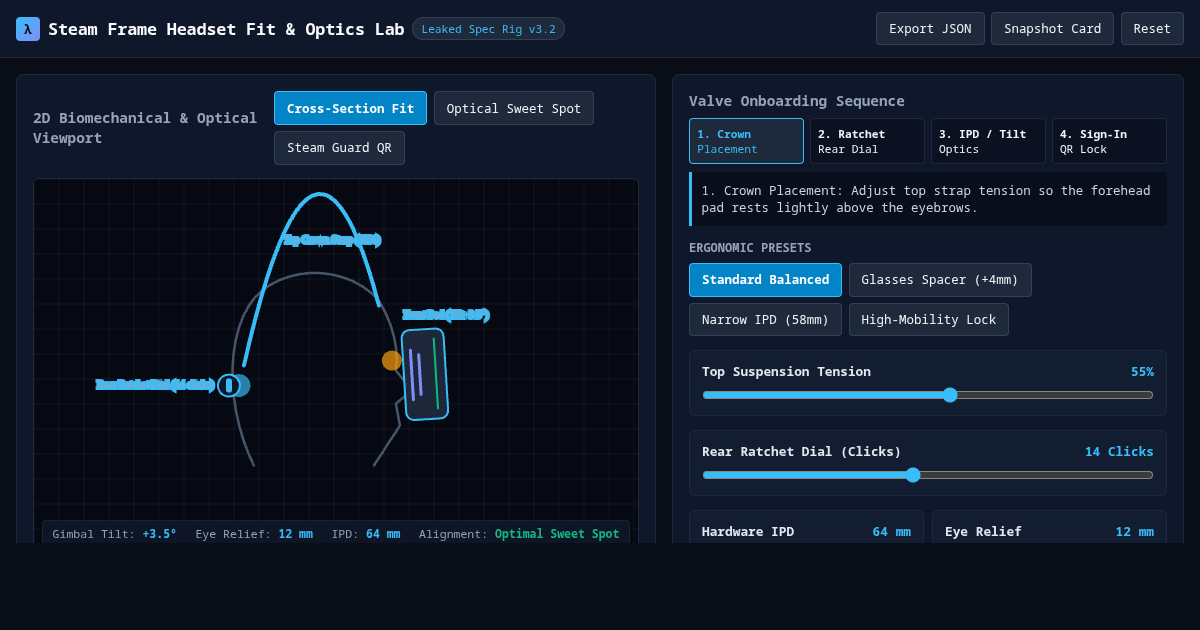

• Pupil Swim & IPD Misalignment: When the center of the pupil does not align with the optical axis (simulated above via the Eyebox Misalignment slider), rays enter non-telecentric zones, warping the virtual world dynamically during saccades and triggering vestibular discomfort.

2. The Refresh Rate Frame Budget: 90Hz vs. 120Hz vs. 144Hz

In traditional flat-panel gaming, dropping from 120 FPS to 95 FPS creates minor visual stutter. In VR, missing a vertical blank sync interval triggers reprojection (asynchronous timewarp), where the game engine synthesizes an extrapolated frame based on head tracking gyro data. While head orientation stays smooth, moving world objects judder violently.

At 90 Hz, game developers have an 11.11 ms frame budget. At 120 Hz, that budget contracts to 8.33 ms, and at 144 Hz, it plummets to 6.94 ms. Achieving locked 120Hz without reprojection artifacting requires pristine thermal headroom, low-overhead tether or custom ultra-wideband wireless streaming, and zero CPU thermal throttling—qualities where dedicated, well-ventilated chassis architectures thrive.
