Precision Plot Tracking in Aerial Drone Imagery

In agricultural phenotyping, field trials, and land cadastre verification, small unmanned aerial systems (UAS) capture multi-temporal imagery over experimental research plots. Unlike broadacre satellite surveillance, drone footage offers millimeter-to-centimeter Ground Sample Distance (GSD), making it possible to quantify individual microplot performance, canopy closure dynamics, emergence rates, and senescence curves.

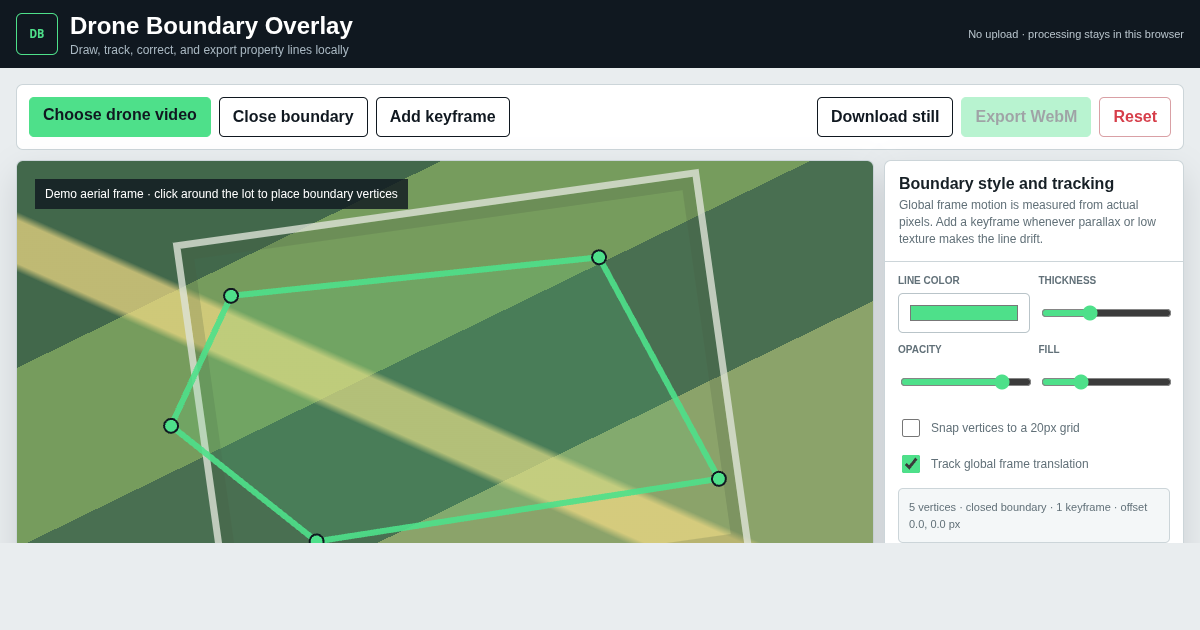

Computer Vision Pipeline for Aerial Plot Registration

Reliable plot tracking requires compensating for six degrees of freedom in drone flight: translational drift (X, Y, Z), gimbal pitch oscillations, and wind-induced yaw. The computational pipeline employs:

  1. Feature Extraction & Homography Estimation: Corner and edge keypoints are continuously detected across keyframes. Planar perspective transforms (homography matrix H) align the camera sensor plane to the terrestrial coordinate system.
  2. Kalman-Filtered Bounding Polygons: Plot corners defined on baseline orthomosaics are projected forward into live video frames. Kalman state estimators suppress frame-to-frame high-frequency vibrations caused by motor turbulence.
  3. Vegetation Index Thresholding: Pixel values within bounded plot regions are extracted into red, green, and blue histograms to derive empirical vegetative indices without requiring expensive multispectral NIR payloads.
Visible Atmospherically Resistant Index (VARI):
VARI = (R_green - R_red) / (R_green + R_red - R_blue)

Excess Green Index (ExG):
ExG = 2 × R_green - R_red - R_blue

Vegetative Indices vs. True NDVI

While standard NDVI requires near-infrared (NIR) wavelengths (700–900 nm), visible-spectrum RGB indices like VARI and ExG exhibit high correlation (r > 0.88) with leaf area index (LAI) and fractional canopy cover during vegetative growth stages. Standardizing lighting variations with in-flight incident light sensors or reflectance calibration panels allows researchers to run high-throughput screening using affordable commercial drones.

Frequently Asked Questions

How does plot tracking overcome drone camera perspective distortion and drift?

Plot tracking utilizes planar homography transformations and Lucas-Kanade optical flow or keypoint feature descriptors (ORB/SIFT). Ground control points (GCPs) or relative frame homographies project rectangular crop plots onto a unified geographic plane, compensating for gimbal pitch and drone altitude variations.

What vegetative index can be extracted from standard RGB drone video?

For standard visible-spectrum (RGB) sensors without NIR bands, researchers rely on the Visible Atmospherically Resistant Index (VARI = (Green - Red)/(Green + Red - Blue)) and Excess Green Index (ExG = 2*Green - Red - Blue). These distinguish vegetative canopies from bare soil.

What export formats are used for drone plot boundaries in GIS workflows?

Tracked plot polygons are formatted as GeoJSON Features with Polygon coordinate arrays and bounding metadata, or ESRI Shapefiles and CSV summaries with lat/lon centroids for QGIS, ArcGIS, and R/Python spatial analysis.
