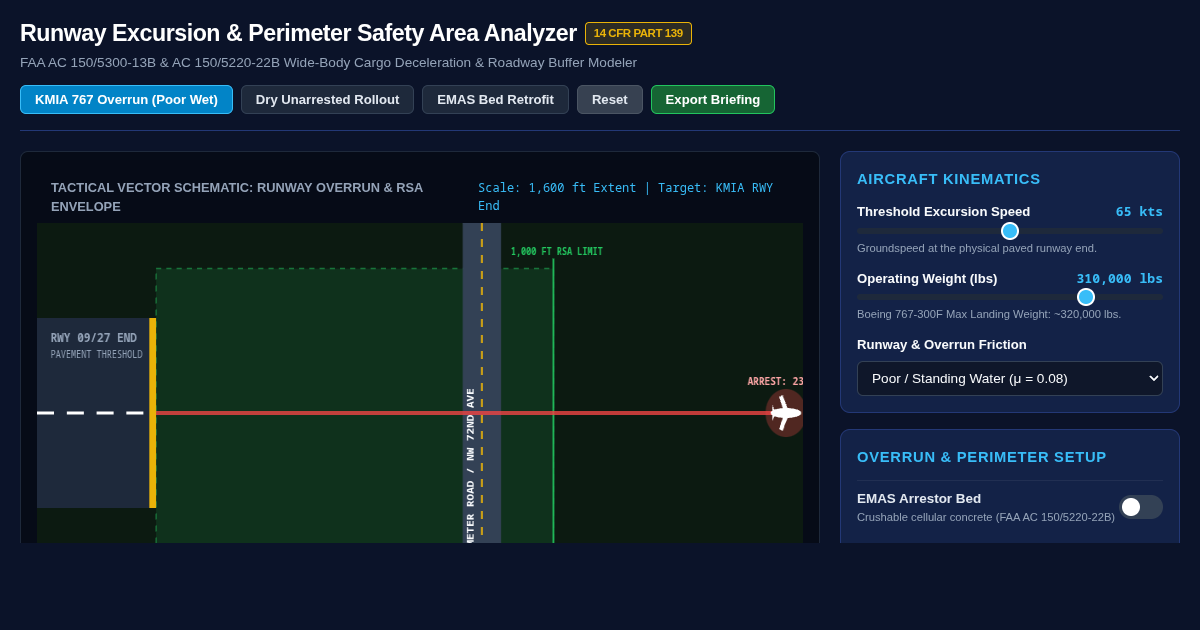

Runway Excursion Containment & Deceleration Analyzer (Boeing 767-300F Calibrated)

Rollout Progress: 0 ft (V: 142 kt) Braking Action: DRY (mu=0.40) | Reverse: BOTH ENG Status: COMPUTING

Touchdown Point 1,500 ft

Stopping Distance (Rollout) 5,420 ft

Runway Margin Remaining +6,096 ft

Exit Speed (at Pavement End) 0 kt

Perimeter Obstacle Arrival 0 kt (SAFE)

Safety Containment Rating

CONTAINED ON RUNWAY

1. Aircraft State & Mass B767-300F

Touchdown Ground Speed (V_td) 142 kt

120 kt (Light Vref) 142 kt (Ref) 180 kt (Tailwind/Hot)

Landing Weight (GW) 310,000 lbs

230k (Empty Cargo) MLW: 320k lbs

Touchdown Aiming Point 1,500 ft

1,000 ft (Aiming) 1,500 ft (Normal) 4,000 ft (Severe Float)

2. Surface Friction & Braking FAA AC 150/5320

Pavement Condition (Effective Friction μ)

Thrust Reverser Deployment (CF6-80C2)

Speedbrakes / Ground Spoilers

3. Airfield Geometry & Hazards FAA Part 139 / EMAS

Runway Pavement Length 13,016 ft

6,000 ft 10,000 ft (Standard) 14,000 ft

Perimeter Obstacle / Road Offset 850 ft

200 ft (Constrained) 1,000 ft (RSA End) 2,500 ft

Arresting Bed (EMAS vs Soil/Grass)

Kinetic Energy Dissipation Curve Megajoules (MJ) vs Distance

Initial KE: 294 MJ KE at Runway End: 0 MJ KE at Perimeter: 0 MJ

Containment & Barrier Comparison Matrix Wet vs Dry vs Contaminated

Surface Condition	Stop Dist (ft)	Pavement End Vel	Perimeter Margin	Containment Verdict

Aeronautical Safety Engineering References & FAA Criteria

FAA Advisory Circular 150/5300-13B (Airport Design): Standard Runway Safety Areas (RSA) for Design Aircraft Group IV/V (e.g., Boeing 767/777) require a 500-foot total width and 1,000-foot overrun containment length beyond the physical runway end. Paved terrain must be cleared, drained, graded, and free of hazardous surface variations.

Perimeter Hazard Mitigation: When physical constraints (canals, perimeter service roads, public thoroughfares, rail spurs, or drainage swales) lie within or immediately adjacent to the overrun zone, AC 150/5220-22B approves Engineered Material Arresting Systems (EMAS). Cellular concrete crush blocks safely dissipate aircraft kinetic energy through controlled landing gear drag, arresting aircraft at entry speeds exceeding 70 kt without catastrophic structural breakup.

Notice: This interactive calculation tool is calibrated using standardized transport-category aerodynamic and wheel friction equations for airport planning, safety containment engineering, and pilot academic instruction. It does not replace aircraft flight manuals (AFM/QRH) or active NTSB accident investigation findings.
