Modular 34-ft Carbon-Fiber Cutaway Schematic
LOA: 34.0 FT (10.36 M)
FORWARD MODULAR PAYLOAD BAY
MASS: 450 KG • POWER: 1.2 KW
Configured for AUKUS Exercise Lanternfish: High-resolution dual-aperture synthetic aperture sonar (SAS) and autonomous neutralization payload for rapid port defense and shallow water mine countermeasure routes.
Operational Mission Presets (Grounded Naval Trials)
SELECT TO RECONFIG

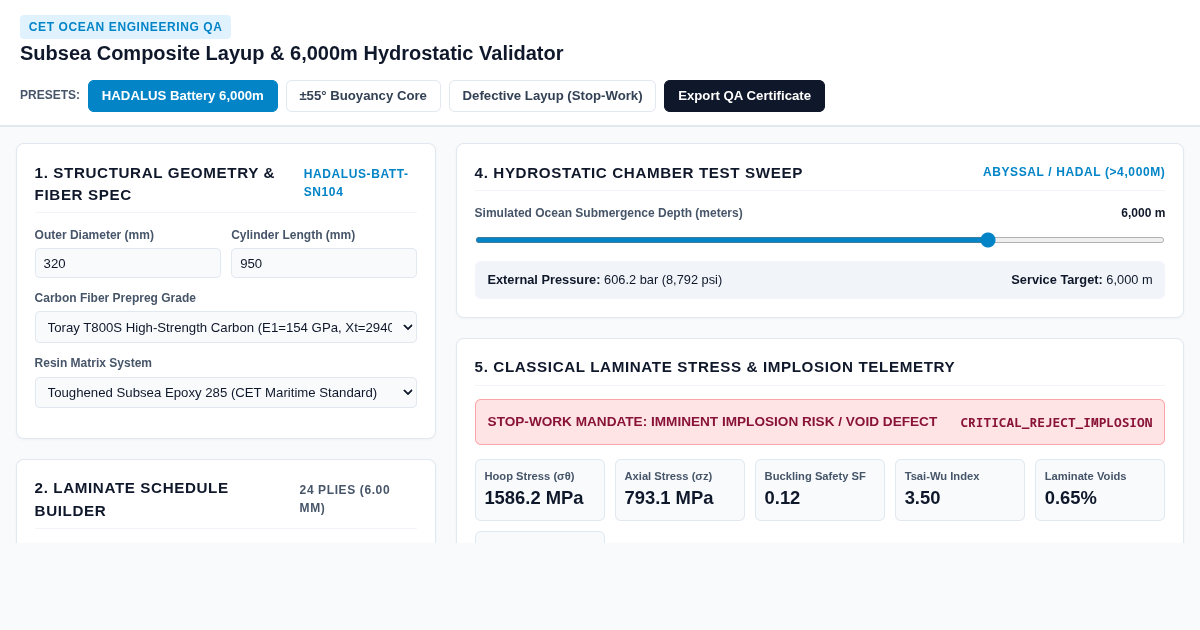

Hydrostatic & Buoyancy Physics
P = 60.6 MPa
6,000 M (19,685 FT)
0m (Surface)
200m (Shelf)
2,000m
6,000m (Abyssal Max)
NEUTRAL (+0.0 KG)
180 kWh
Hydrostatic Pressure
60.6 MPa
8,789 PSI (P = ρgh)
Hull Hoop Stress
424 MPa
Carbon-Fiber Vessel
Structural Safety Factor
2.28 ×
Implosion Margin OK
Transit Range
2,140 nmi
Endurance: 22.4 Days
ISO Shipping Container Flat-Pack Logistics
STANDARD 20-FT / 40-FT ISO
HADALUS was engineered from inception around modular expeditionary logistics. Rather than requiring dedicated heavy naval sealift or specialized dry docks, the 34-foot carbon-fiber airframe uncouples into standard containerized modules for commercial air/sea freight and rapid point-of-need assembly.
TRANSPORT FOOTPRINT
1 × 40-FT ISO BOX
FIELD ASSEMBLY TIME
< 4 HOURS (4 TECHS)
MANUFACTURING SITE
CET BRISTOL, RI
Advanced Composite Specs & Validation
NATO ACCELERATOR
| Engineering Attribute | Validation / Protocol | Status |
|---|---|---|
| Hull Architecture | Automated Fiber Placement (AFP) Carbon-Fiber | Validated |
| Max Rated Service Depth | 6,000 m (19,685 ft) Full-Ocean Service | 60.6 MPa Tested |
| Testing Regimes | Hydrostatic, Deep Cyclic Fatigue & Implosion | Passed |
| NATO DIANA Selection | 2026 Cohort (15 Selected of 3,600+ Proposals) | Mission Track |
| Submerged Launch Demo | At-Sea Navy Undersea Test Range w/ Raytheon | Aug 2026 Demo |
| Workforce Apprenticeship | RI State-Recognized Composite Tech Program | Active |
Data synthesized from Composite Energy Technologies (CET) public technical releases, NATO DIANA 2026 Mission Track announcements, and Raytheon August 2026 submerged launch demonstration parameters.
